Asset Assurance with CubiSens™ n-Series

Revolutionizing Security and Environmental Monitoring of Valuable Assets

The CubiSens™ n-Series is a family of programmable smart tags, ideal for unobtrusive wireless monitoring of assets that require both security and protection from unwarranted handling and dangerous environmental conditions. The tags feature operational lifetimes of more than five years, extendable to over 10 years with different battery options. With their incredibly small form factors and long-range wireless alert system, CubiSens™ n-Series smart tags can be deployed onto any asset that needs to be tracked, delivering complete peace of mind. CubiSens™ smart tags are fully encapsulated in non-toxic epoxy and can be directly adhered to high value assets.

Cubisens™

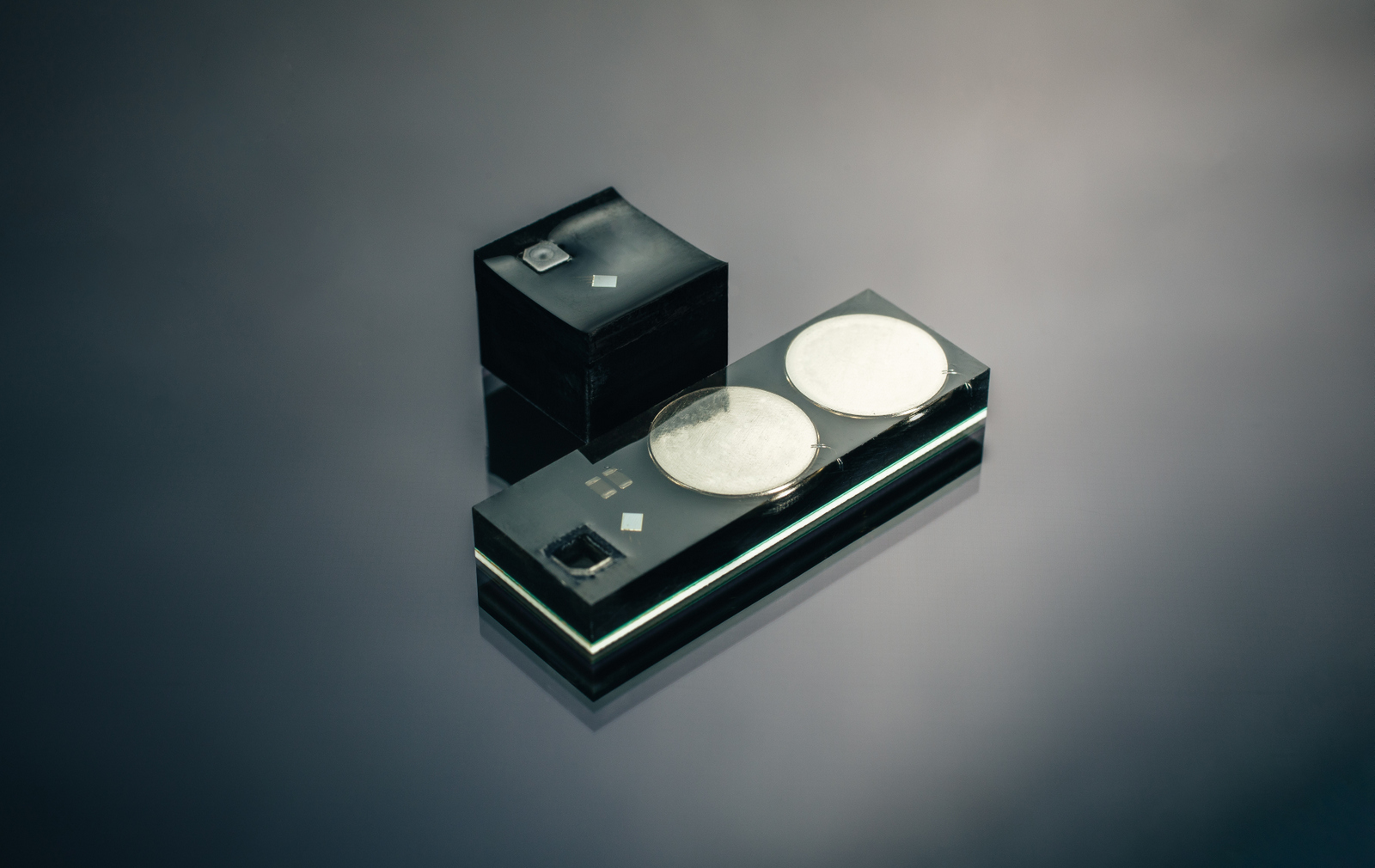

n-Series AH100

10 x 10 x 8mm3 or
30 x 10 x 3.6mm3

Features:

  • Millimeter-scale form factor
  • Lightweight (2g)
  • Long range wireless readout (100m)
  • Continuous three-axis motion detection
  • Magnetic tamper detection (optional)
  • Superior temperature accuracy (±0.05°C)
  • Accurate humidity sensing (±1.5% RH)
  • Variable check-in  period (2s to 1hr)
  • 8,000+ on-board sample/data storage (optional)
  • Rugged packaging (sustains 5,000 psi)

Benefits:

  • Unobtrusive wireless monitoring and logging for extended lifetime (5+ years)
  • Low-maintenance requirements – deploy once for assured functionality
  • Automatic alerts on unauthorized movement or handling detection
  • Automatic alerts for dangerous environmental levels
  • Periodic check-in messages
  • Trusted environmental history, even when isolated from power and control systems
