CubiSens™ XT1 NFC

Transforming the Biopharma
Cold Chain

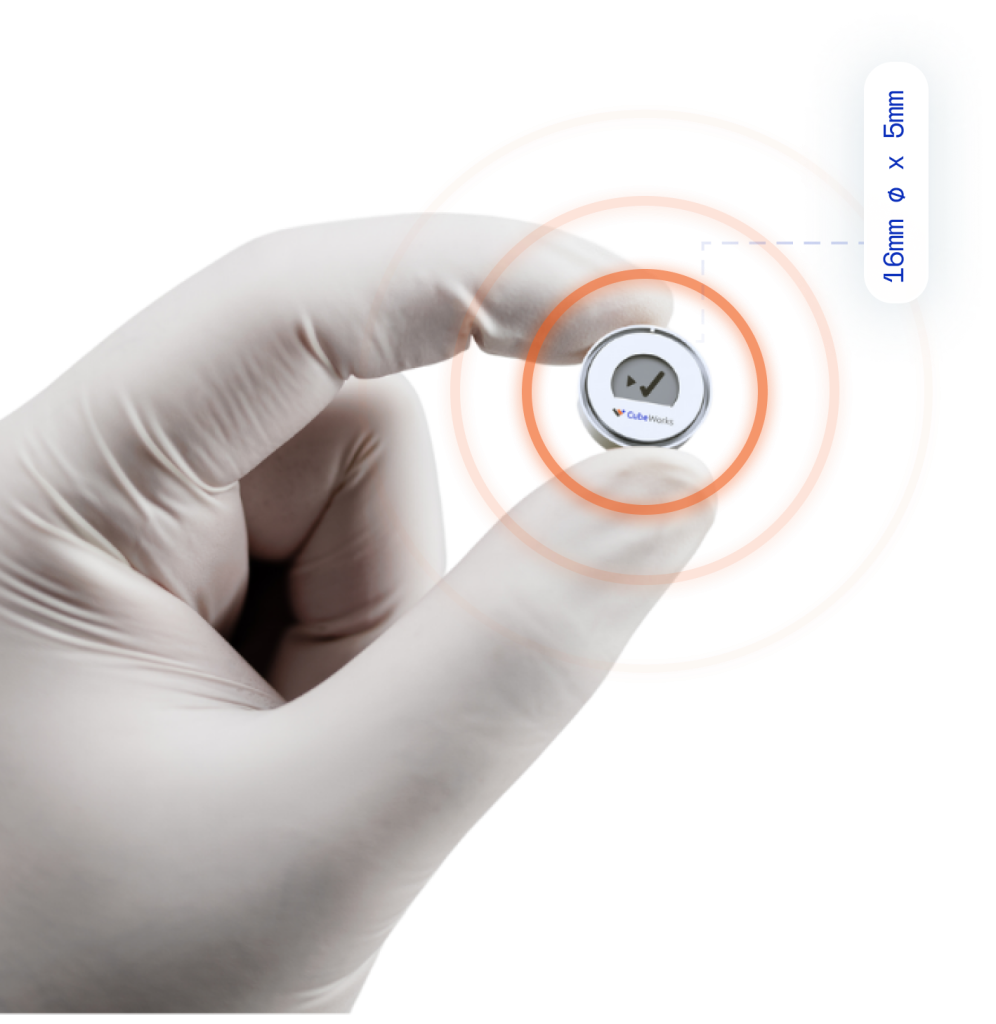

16mm ø x 5mm

Revolutionizing Biopharma
Cold Chain Monitoring

The CubiSens™ XT1 NFC Wireless Temperature Tracker is a tiny temperature tracker that can be attached to shipments of biopharmaceuticals, as well as individual vials and syringes, to help ensure temperature compliance for a product’s lifetime.

Small, lightweight, and completely wire-free, the XT1 NFC attaches easily to biopharmaceuticals and provides continuous temperature tracking for up to 3 years. The
XT1 NFC enables pharmaceutical manufacturers and logistics providers to gain complete visibility of a product’s temperature history through the supply chain.

Product Description

The CubiSens™ XT1 NFC Temperature Tracker is a millimeter-scale wireless sensor for continuous temperature monitoring of temperature-sensitive items in the supply chain.

At 16mm ø by 5mm, the XT1 NFC is the world’s smallest, longest lasting, and most precise data logger for cold chain logistics. The XT1 NFC can run in operation mode for 3 years, and the full temperature history can be accessed at any time via NFC download using a standard smartphone.

Key Features

  • Continuous Monitoring & Logging for up to 3 Years

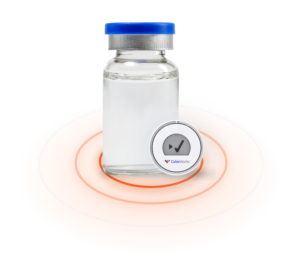

  • Small Enough to Tag Individual Vials
  • Individually Calibrated and Highly Accurate (±0.3°C)
  • Cloud-Based Data Storage
  • End-to-End Data Encryption

Benefits

True End-to-End Temperature Tracking

Enables Proactive Response

Risk Management & Mitigation

Supply Chain Management and Optimization

Smartphone Interface and Cloud Database

FOR TEMPERATURE TRACKING AND MANAGEMENT

Temperature data from the XT1 NFC is available instantaneously through the XTscan™ App, enabling pharmaceutical manufacturers and logistics providers to ensure temperature compliance. Data from the XT1 NFC is also available in the XTcloud™ cloud database.

The XTscan™ App allows for temperature threshold and measurement interval customization, providing users with the flexibility needed for tracking temperature across products.

Technical Specifications

CubiSens™ XT1 NFC
NOW AVAILABLE
Dimensions 16mm ø x 5mm
Weight1.25g
Battery Life3 Years
Temperature Accuracy±0.3°C
Temperature Resolution0.1°C
Operation Temperature-40ºC to 65ºC
Calibration MethodIndividual Calibration
Wireless ConnectionSmartphone / NFC Interface

Order Your CubiSens™ XT1 NFC Kit
